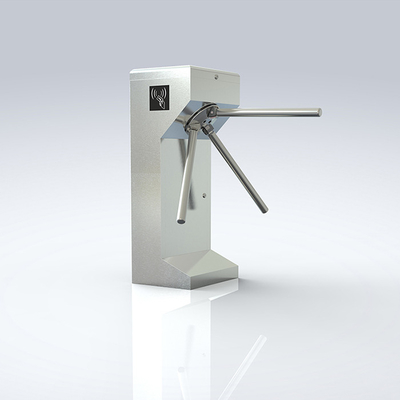

Security Access Control Management Half Height Turnstile Security Access Control QR Code Ticket RFID Card Reader Automatic Tripod Turnstile Gate

1 Set
MOQ
$175.00(1 - 9 Sets) $163.00(10 - 49 Sets) $158.00(50 - 99 Sets) $149.00(>=100 Sets)
価格
Security Access Control Management Half Height Turnstile Security Access Control QR Code Ticket RFID Card Reader Automatic Tripod Turnstile Gate
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: TDZ-311
Material: Stainless Steel
Color: Silver
Size: 330*420*980mm
Frequency: 125KHz/13.56MHz
Coating: Brush
Application: Security Access Control Management
証明: CE RoHS FCC Ccc
Usage: Security Inspection
Main Product: turnstile/speed gate/ bollard
Keywords: barrier gates turnstile
基本情報
証明: CE RoHS FCC Ccc
Model Number: TDZ-311
お支払配送条件
Packaging Details: standard package
製品の説明
Product Description
Specification
Structure parameters
value
Housing material
304 grade stainless steel
Thickness
1.5mm+1.2mm
Surface treatment
Brushed finish
Technical parameters
550-900mm
Size
330*420*980mm
Lane width
600mm
Passing speed
0.2sec
Passing speed
35--50 people/min
Weight
35KG
Turning angle
120 degree
MCBF
5.000.000 times
Application
Indoor or outdoor
Rotating directional
Single way or Bi-directional adjustable
Noise
<55db
Operating temperature
-15 to 70℃
Relative humidity
5% to 95%
Package
Carton box inside. Wooden case outside
Electronic parameters
Dry contact
Power supply
110-220V/AC, 50/60HZ
Rated power
100W
Input signal
Dry contact
Driving motor
Solenoid

Basic Function

² The entry and exit directional can be set independently, free mode / forbidden model
² Direction indicator: The direction indicator is installed on the top of the housing cabinet to indicate the valid passing
direction
² Compatibility: Equipped with dry contact signal input interface can make sure compatible with all kinds of access controllers
² Arm will drop down automatically when the power off. Which is meets the firefighting requirement
Our Advantages
1.13 years of access control system solution service supplier.
2.Enterprise with patented technology for the whole industry of access turnstile gates.
3.Enterprise with the patents for a full range of the same style of access turnstile gate.
4.Possess technology enterprise certificate, ISO quality system management certification.
5.The product with CE, SGS certification, and the Department of Public Safety test report.
6.Support secondary development and customization of hardware and software such as access turnstile gates, access control,
face recognition, etc.
7.Appearance design patent, movement utility new model patent, gate control board patent.
8.Software patents of Smart scenic spot ticket sales system, Smart building cloud visitor system, Smart community system,
All-in-one card management system, etc.
Company Profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers. The company's technology stems from mature domestic and foreign technology transfer and independent research and development. The products are localized and the core technology is independently controllable. The company introduced advanced control technology and manufacturing technology from Germany and Switzerland, and has an experienced R&D and manufacturing team. In the application field of security gate control gate equipment, it has realized infrared and light curtains. The industry's logic and control technology for the gate movement module, the self-developed and manufactured electronic control module for pedestrian passage gates and vehicle barrier gates have covered customers in various industries such as high-speed rail stations, subway stations, airports, ports, highways, etc. group. Since its establishment, our company has won the recognition and support of our customers by virtue of "excellent quality, honest service". Now the factory covers an area of more than 2,000 square meters and has passed the ISO9001:2015 quality management system certification. In the channel gate equipment industry, tens of thousands of electronic control products developed and manufactured by Jiayu Mechatronic Co., Ltd. have been shipped on supporting customers' complete equipment, which are spread all over the country, as well as overseas regions such as Europe, Middle East, and Southeast Asia. The field has contributed a lot. In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.
Product packaging
FAQ
1.Can machines be used outside?
With waterproof function, can be used outside well.
2.What is the warranty for the machine?
Whithin 12 months, if any problems, we will offer the accessories free.
3.When will you make the delivery?
Our production is 3-5 days. Bulk quantity may different.
4.How does your factory control the quality?
We have professional QC apartment. each order will be examined before delievery.
5.What is your MOQ?
Any quantity is acceptable.
6.Payment term?
30% by T/T, 70% by T/T before delivery. Paypal, Western union and Money Grame are acceptable.
