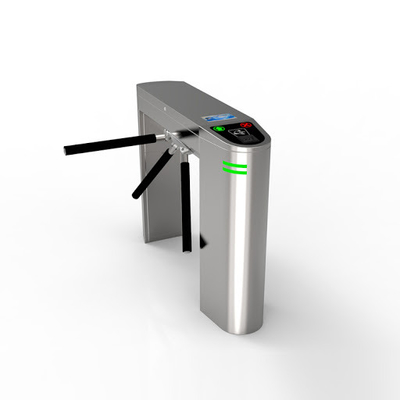

Name: Pedestrian access control entrance and exit gate, card swipe entry machine tripod turnstile / people access control tripod gate
Brand: Pedestrian access control entrance and exit gate, card swipe entry machine tripod turnstile / people access control tripod gate
SKU: ZT-923
Price: 1 USD
Availability: InStock
Rating: 4.6 (105 reviews)

特徴ギャラリー製品の説明見積依頼

特徴

仕様

Model Number: ZT-923

Product name: Tripod Turnstile

Material: 304 Stainless Steel

Warranty: 1 Year

Certificate: CE

Application: Pedestrian Access Control

Dimension: 1200*280*980MM

Passage Width: 550mm-600mm

Pass speed: 25-35P/MIN

direction: Bi-directional

Weight: 65kg

基本情報

証明: CE

Model Number: ZT-923

お支払配送条件

Packaging Details: wooden box

Supply Ability: 10 Set/Sets per Day

製品の説明

Product Description

Functions and features	full-auto	semi-auto	manual
1、Malfunction self-check and alarm reminder, ease of maitenance and use	√	×	×
2、Running method can be set through small buttons on the control panel	√	√	×
3、How arm reacts in emergency	drop automatically	drop automatically	no movement
4、How arm reacts when power on	go up automatically	go up by hand	no movement
5、Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)	√	√	×
6、Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on	√	√	×
7、Unique positioning, self reset, one arm always in the horizontal level	√	√	×
8、LED lamp indicator	√	√	×
9、when open signal is given, arm rotate to a certain degree	√	×	×
10、how arm reacts when people passing	rotate automatically	push by hand	push by hand
11、one direction or bi-direction flow control	√	√	adjust by hand
12、work directly with PC for remote control and management	√	√	×
13、Bi-direction Anti reverse rotation	√	√	×

T500 Intelligent Face Temperature Measurement Terminal Product Specifications

Intelligent face temperature measuring terminal T500 is an embedded authentication device based on Android system. Product Characteristics Free installation The device has built-in management software, which does not need to be installed on the PC side, and supports the intelligent face cloud platform. Rich communication methods Support Wi-Fi, Bluetooth, 4G, Ethernet. Varios UI A variety of themes can be selected, and the style can be customized. Multilingual Support multilingual switching between Chinese and English Product features 1.Millisecond-level recognition speed, no-sense traffic; 2.Supports 30,000 local face databases, 1 million identification records, and 100,000 snapshots of on-site identification records; 3.Real-time tracking of human faces and accurate recognition; 4.Support two-dimensional code identification, Chinese and English language switching; 5.Support monocular live detection to prevent video and picture deception; 6.Support the standard Wiegand protocol in the access control industry, and support hardware connections such as second-generation ID card readers, card readers, and serial port protocol expansion docking; 7. Multiple interface theme style choices; 8.Support human body temperature screening 9.Flexible access of three management software, which can be freely selected according to the scene; 10.Open API or SDK interface for docking or secondary development with third-party systems;

Product model	T500
Product characteristics	major function	Body temperature screening, access control, attendance, sign in, in vivo inspection, 4G communication, IP55 dust-proof and waterproof, QR code
	Use environment	outdoor, indoor
	Size (length * width * thickness)	225mm121mm25mm
	weight	458g
	Main enclosure material	Aluminum magnesium silicon alloy
	Panel material	9h high hardness tempered glass
	color	silvery
	RGB camera	2 million HD camera, 1080p
	Infrared camera	2 million HD camera, 1080p
	Infrared fill light	Support
operating system	Android	Above Android 7.0
processor	CPU	4-core + 2GB memory + 16GB flash memory
human-computer interaction	Display	7 inch 1024*600
	Stand alone online mode	PC or mobile terminal connection login operation
	speaker	Live voice support
communication system	4G LTE	4G全网通
	Ethernet	10 / 100Mbps Ethernet
	Wi-Fi	Meet iee802.11 B / g / N standard (2.4G)
Input/ output interface	USB interface	USB 2.0 HOST
	Relay interface	COM/NO/NC two groups
	RS232/RS485interface	support
	Wigan interface	Support Wigan 26, 34, 66 output and input
power	adapter	DC 12V-2A
Environmental requirements	Working temperature	-20℃ - 60℃
	Working humidity	0% - 90% no condensation
	Electrostatic protection grade	IEC61000-4.2, LEVEL 3
Infrared temperature measurement	Temperature measurement distance	40-55cm
	Temperature measurement accuracy	±0.5℃
	Pixel points	32*32
Installation mode	Wall mounted, gate, column	Design of hidden alarm wiring
