製品の説明

Products Description

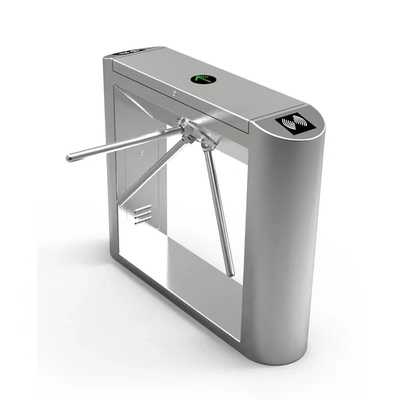

Tripod Turnstile

One type of the Turnstile for pederstrians intelligent access control terminal equipment.The whole profile is stamped from the standard SS304, beautiful and generous shape, rust proof, durable, resisting external damage.The passageway composed of rectangular frame and barrier arm can provide orderly and civilized access for the pedestrians, prevent illegal access., and quickly control the droping or lifting the arm in emergency. The adoption of standard electrical interface can easily integrate the bar code card, ID card, IC card and other card readers into the equipment, to provide civilized and orderly access for pedestrians, at the same time can prevent unauthorized persons access.In addition, the system is specially designed the function to meet the fire prevention requirements to ensure that the passage is unimpeded, convenient for pedestrians timely evacuating in emergency.

Model	EG-SGZ004
Case Material	SS304
Barrier Arm material	SS304
Production Process	CNC Laser Cutting
Size	1200280980mm
Power input	AC100-240V,50/60HZ
Operation voltage	DC24V, 3A, Power: 40W
Electromagentic	Duty Cycle 100%
Barrier Arm Length	510mm
Arm Max Applied Force	80Kg
Passage direction	Single directional/Bi-directional(Optional)
Operating time	0.2 seconds
Throughput Rate	30-35 persons/minute
MCBF	5,000,000 Cycles
Automatic Reset Function	Automatically locked within set time(Time Adjustable)
Operation Humidity	0~95%(No Freezing)
Operation Temperature	-15℃~+60℃
Operation Eenvironment	Indoor,Outdoor(Shelter)
Protection Level	IP45
Communication Interface	TCP/IP

Strong Mechanic Component The die casting rotary hub with sand blasting offer the reliable durablity Unique Electric Control Centre Speical designed mainboard, airr swtich and postion swithc all-one the water proof box, no rust risk in the drain.

Advantage

1. Adopting special ARM core micro CPU circuit and digital positioning technology, the stable start and control,the more accurate brake arm automatic control ability.

2. Smoothly Running, small noise, simple and reliable restructure.

3. The surface of the movement unit atopting anti-rust and anti-corrosion treatment, durable. Hydraulic movement unit is recommended for scenic spot ticketchecking advice.

4. Providing multiple RJ45 interface and RS485/232 interface, can connect a variety of card reader, magnetic stripe, EMID, MIFARE 1 CI, Ti, and support variety data format, WIEGRAND26, WIRGRAND34, WIRGRAND66, also can connect the bar code reader, fingerprint recognizer, palmprint recognizer, face recognizer, strong compatibility, convenient for system integration.

5. Adopting TCP/IP communications protocol, real-time data upload and real-time data acquisition, facilitating the clients to deal with all kinds of data analysis, and to ensure no data losing due to large amount of data or emergency.

6. Control panel with counting function, LCD/LED display function (optional)

7. Panel with a memory function

8. Brake arm locking and alarm function

9. Blackout emergency function, the brake arm automatically falling when power off,manually lifting the arm (semi-automatic) or automatically lifting(full-automatic) when power on

10. With automatic reset function, after the card reading, the system will automatically cancel the acess if the pedestrians not going through in the set time(time adjustable)

11. Strict waterproof mechanism, and the built-in ventilation structure, ensure the safety of electrical and mechanical and electric control unit, to ensure that equipment applied to various environments.

12. Available connetion with access control system, consumer systems, electronic ticket system biometric system static tester and other equipments.

More Product

Q1: can we connect your access control system with ours? A: Yes, we provide SDK and software development services with connection ports. Q2: is your revolving door / emergency door waterproof? A: Yes, our revolving gate / emergency gate is waterproof.

Q3: how do we install those revolving doors / barrier doors? Is it easy to do?

Yes, it's really easy to install and we've done most of the work before we sent the product. You just need to screw in the gate and connect the power cable to the Internet cable.

Q4: can you make it according to our size?

A: we can provide customized services according to your detailed requirements, or design unique revolving door products according to your real site to make different sizes, software and functions.
